HAFCO METALMASTER CS-350V

CS-350V Cold Saw, Includes Roller Conveyor & Stand Package Deal 160 x 90mm Rectangle Capacity ??350mm

HAFCO-METALMASTER CS-350V Cold Saw, Includes Roller Conveyor & Stand Package Deal 160 x 90mm Rectangle Capacity ??350mm Blade, Variable Blade Speed 24~120rpm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K070

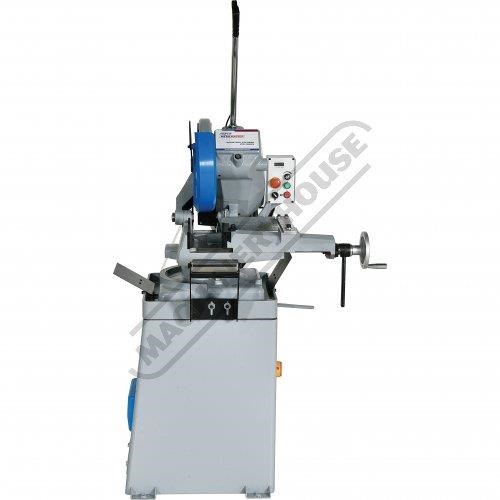

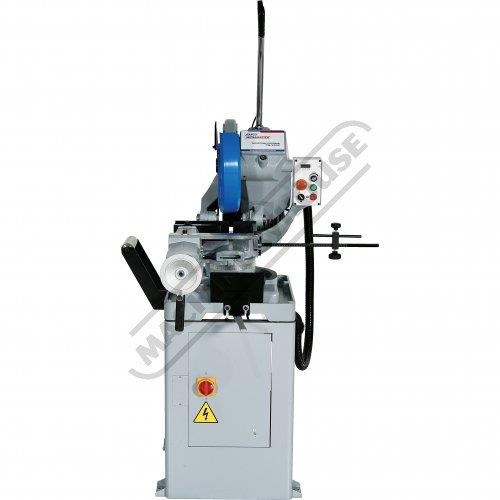

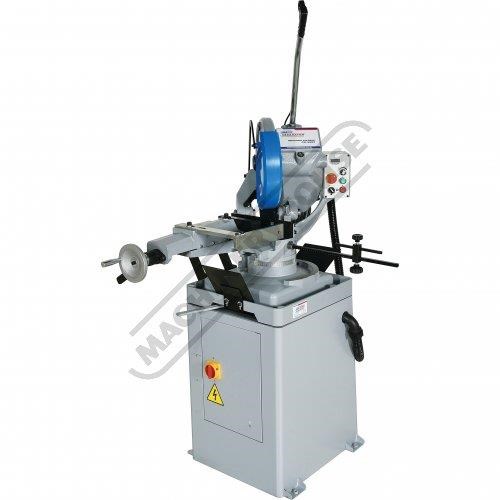

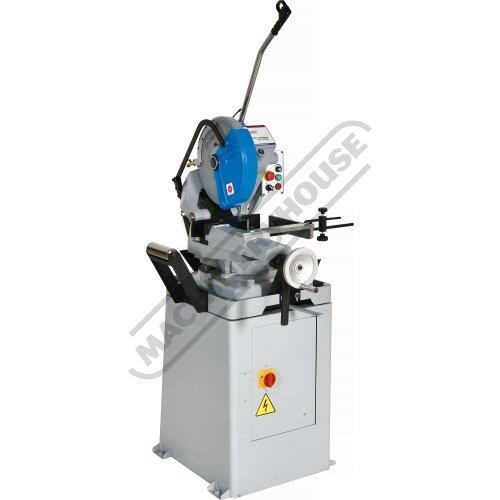

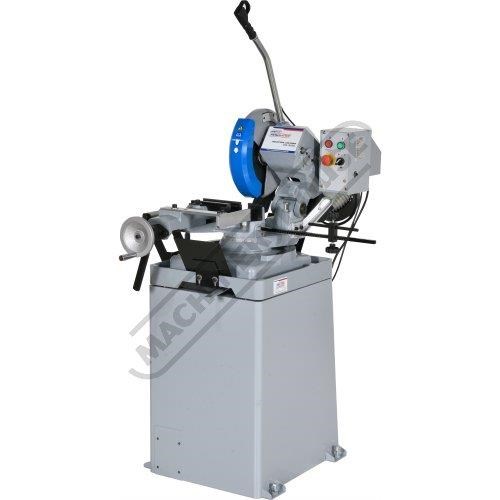

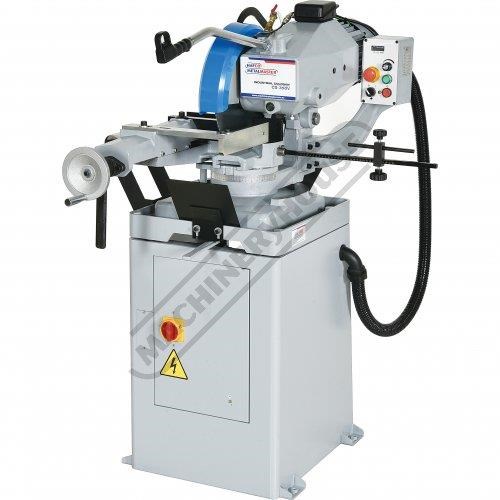

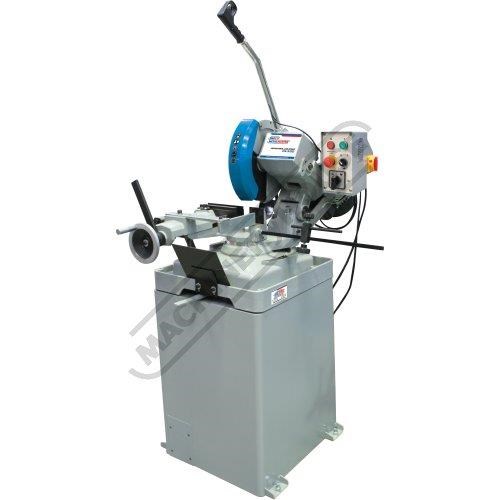

The latest 240 volt Hafco MetalMaster manual cold saw consists of a 350mm circular saw blade that can run at 24 to 120rpm via a electronic variable blade speed control and also incorporates a coolant system with an adjustable flow control valve. These cold saws are designed to cut at 90??, or mitre up to 45?? in either left or right side of the material simply by releasing the lever located at front of machine and swivelling the head to the desired angle. Each machine comes standard with a very heavy and strong cast iron frame base with a cast dual pivot saw head supported by an industrial swivel base system, which makes this MetalMaster cold saw one of the most rugged machines on the market.

The MetalMaster manual cold saw head is well balanced and uses a long actuating handle giving the operator greater leverage and control to guide the saw blade through the work piece of tubing or pipe etc, with ease and utilises a quality head retraction system for returning the cold saw head to the start position. The vice clamps the work piece on both sides of a cut, which extends blade life because the cut off does not drop into the blade.

Features:

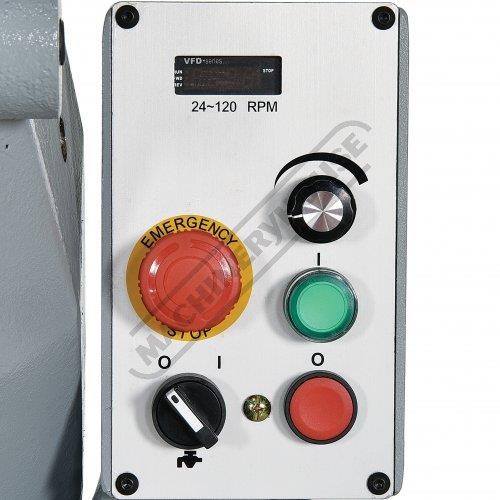

Electronic variable speed 24~120rpm
2.2kW / 3hp 240V heavy duty motor
Rugged cast iron construction offers years of accurate cutting
Lock at any angle between -45?? or +45?? mitre in both directions via locking lever

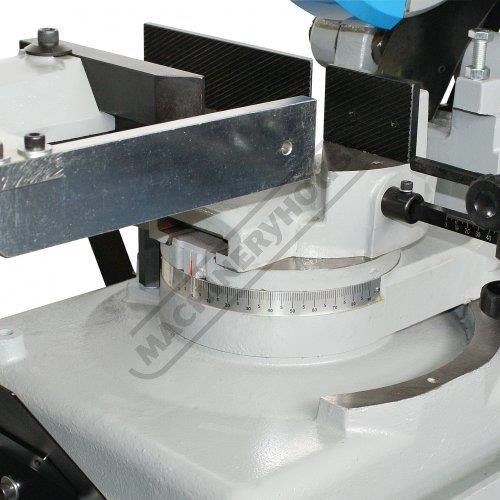

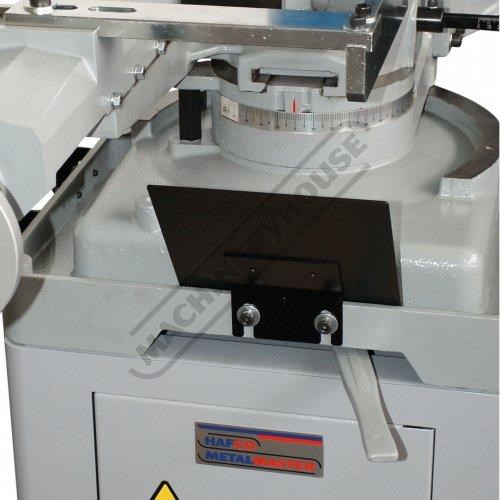

Degree markings engraved onto swivelling base for quick and accurate mitre cutting

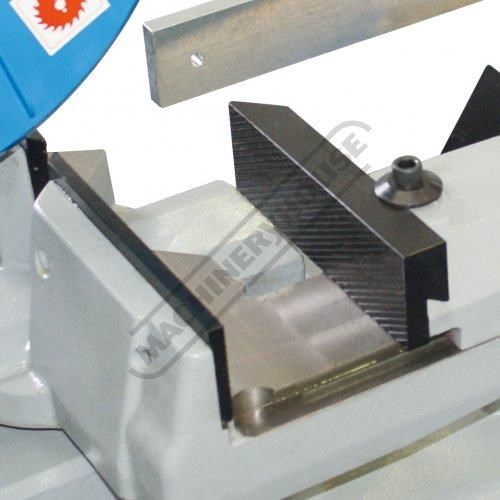

Dual material clamp system providing burr free cuts on both pieces of material

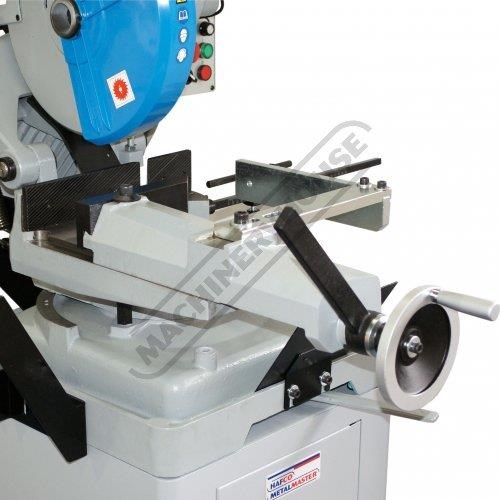

Quick action vice clamp lever designed to increase production

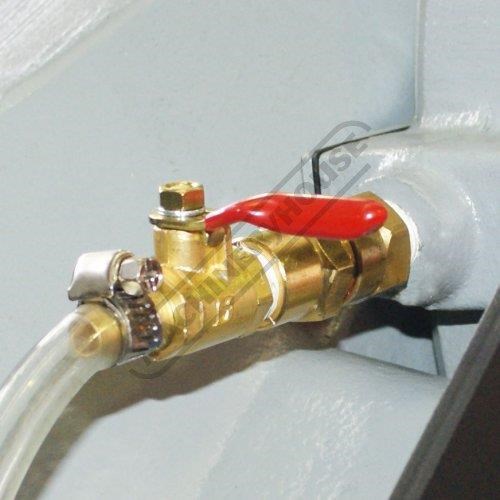

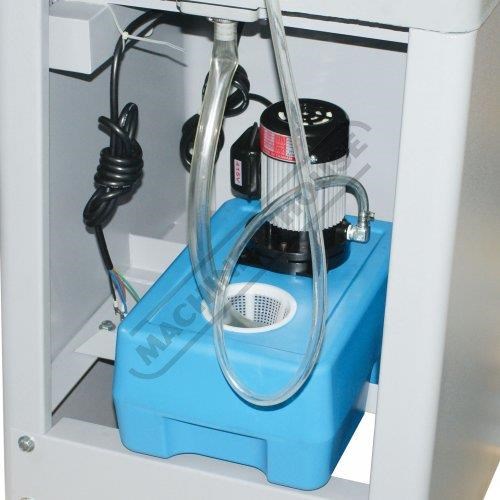

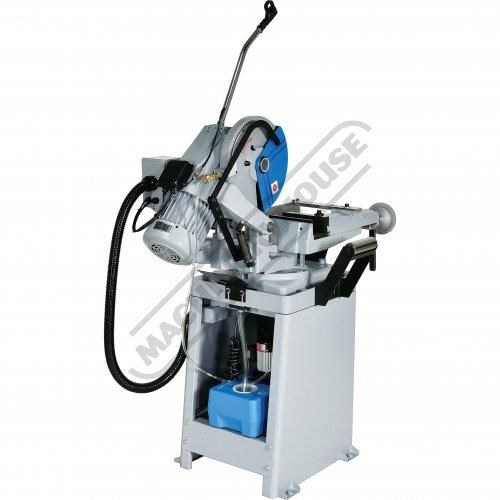

Built in blade coolant pump system with flow control valve
Oil sight glass located on right side of the gearbox so operator can maintain correct lubrication levels according to specifications provided

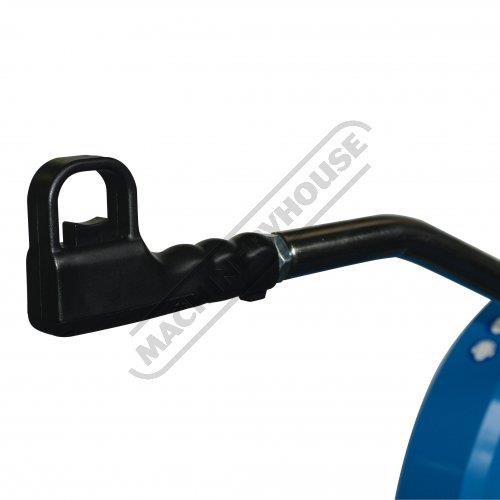

Dead man trigger switch located on cutting handle provides operator safety on/off power control
Automatic retract safety blade guard covers blade when returned to home position
Spring assisted head return provides a even balance during cutting operation and reduces operator fatigue
HSS cutting blade is included for general types of material and thickness

Please Note:
This machine is not supplied with a 240 volt plug

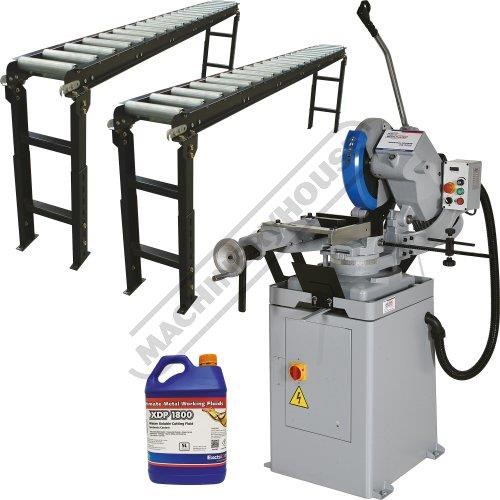

Includes:
- CS-350V Cold Saw - 240V
- Machine Stand
- Coolant System

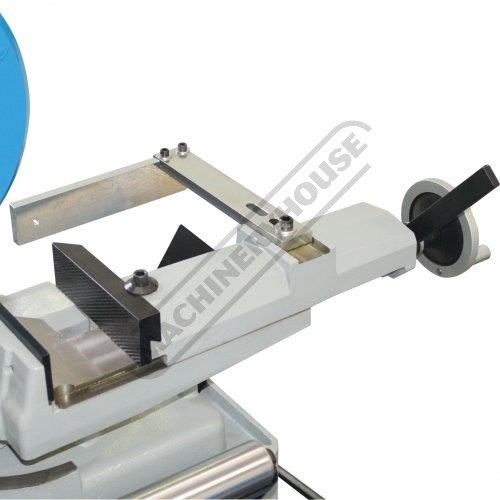

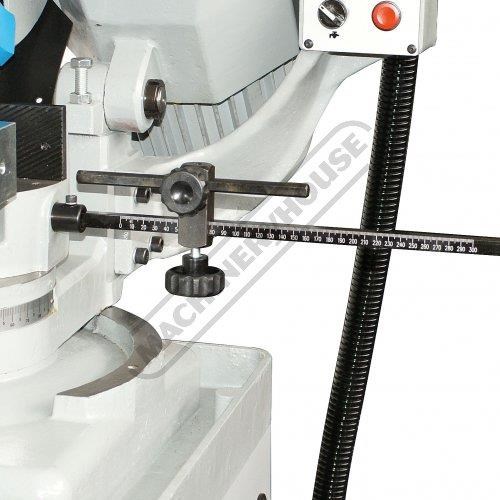

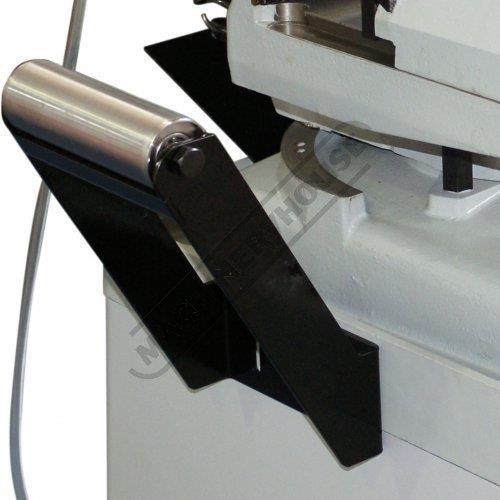

- Machine Length Stop
- Dia. 350mm Blade
- 2 x Roller Conveyors 290 x 3000mm - (L812)
- 4 x Conveyor Stands 290mm - (L814)
- Synthetic Metal Cutting Fluid



Specifications:
ORDER CODE: K070
MODEL: CS-350V Package
Cutting Head Action: Manual
Operation Type: Swivel - Dual Mitre
Round Capacity @ 90?? / 45?? (mm): 120 / 100
Square Capacity @ 90?? / 45?? (mm): 105 / 85
Rectangle Capacity @ 90?? / 45?? (WxH) (mm): 160 x 90 / 85 x 70
Blade Size - Diametre. x Bore (??) (mm): 350 x 32
Vice Clamping Fixture: Manual
Coolant System: Yes
Table Working Height (with Stand) (mm): 1000
Blade Speed (rpm): Variable 24~120
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 240 / 20
Nett Weight (kg): 370
