Features

Title HAFCO M30
Type Engineering - Fabrication
Sub Type Cutting Equipment
Class Plasma Cutter
Make HAFCO
Model M30
Sale Price $181 GST Exclusive
Listing Type New
Stock Number 276751
RefCode TA1266701

Description

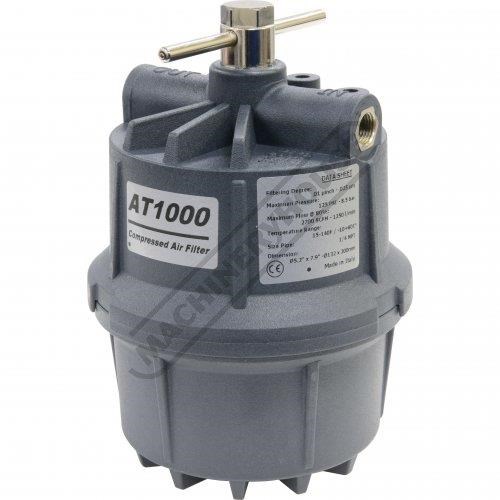

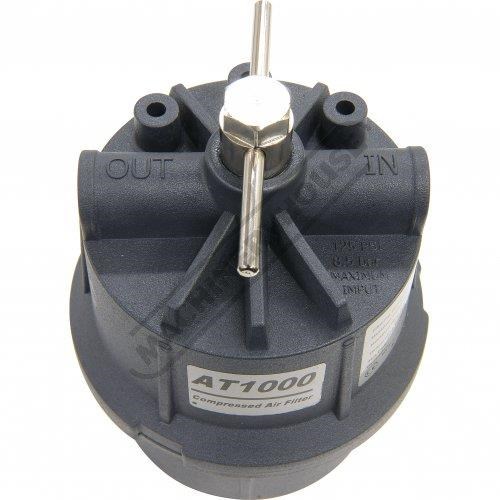

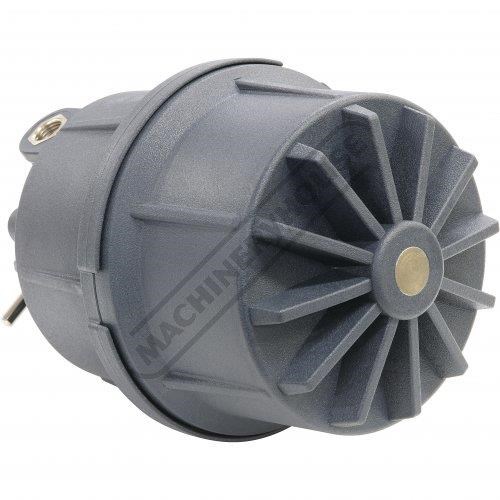

AT1000 Plasma Sub-Micronic Air Filter Canister #50500-12 Up To 1250l/min.

UNIMIG WELDERS AT1000 Plasma Sub-Micronic Air Filter Canister #50500-12 Up To 1250l/min.
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: C492

The key to our efficiency is based on compressing the element axially and forcing it to expand radially against the tapered walls of the housing. This forces the air to pass between the tightly compressed layers along the length of the element, creating a true depth filter verses the conventional method of passing the air through layers of media.

Using this unique method of filtration creates a labyrinth of sub-micronic openings from the interlocking fibres on the fabric surfaces, entrapping particles as small as .01 microns.

All this incredible filtration is accomplished while at the same time the patented compression technique maintains an optimum filter density, providing maximum efficiency with a minimum pressure drop at the optimum flow rate.

Features:
Suits paper roll filters
Single thumb lock
1/4`` NPT thread
125psi (8.5 bar) maximum pressure
0.01 micron filtration
132mm diameter x 200mm high canister
1250l/min. maximum flow

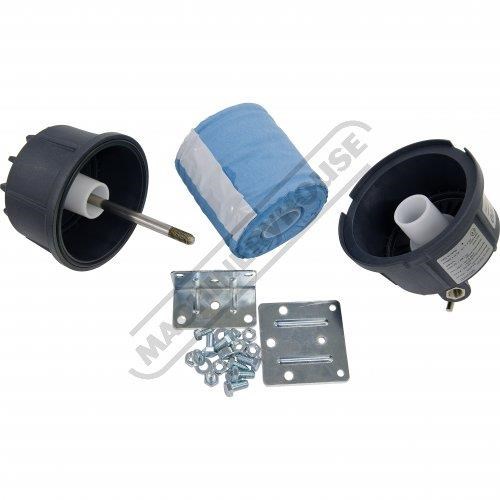

Includes:
- 1 x filter cartridge
- 1 x flat mounting bracket
- 1 x 90?? mounting bracket
- 3 x self tapping screws
- 6 x M8 x 16mm bolts
- 6 x M8 flat washers
- 6 x M8 nuts



Specifications:
ORDER CODE: C492
Type: Air Filter Canister Complete


To Purchase Online Please Visit The Machineryhouse Website & Search For 'C492'
