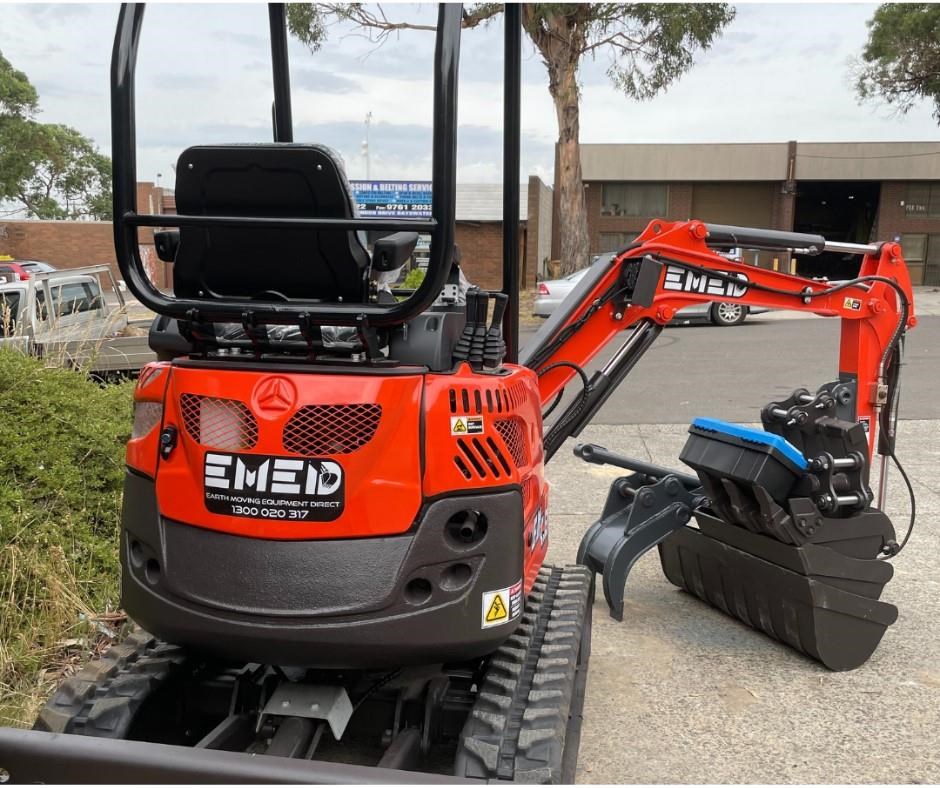

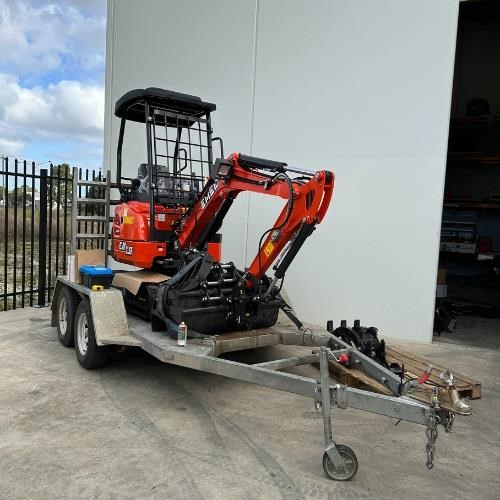

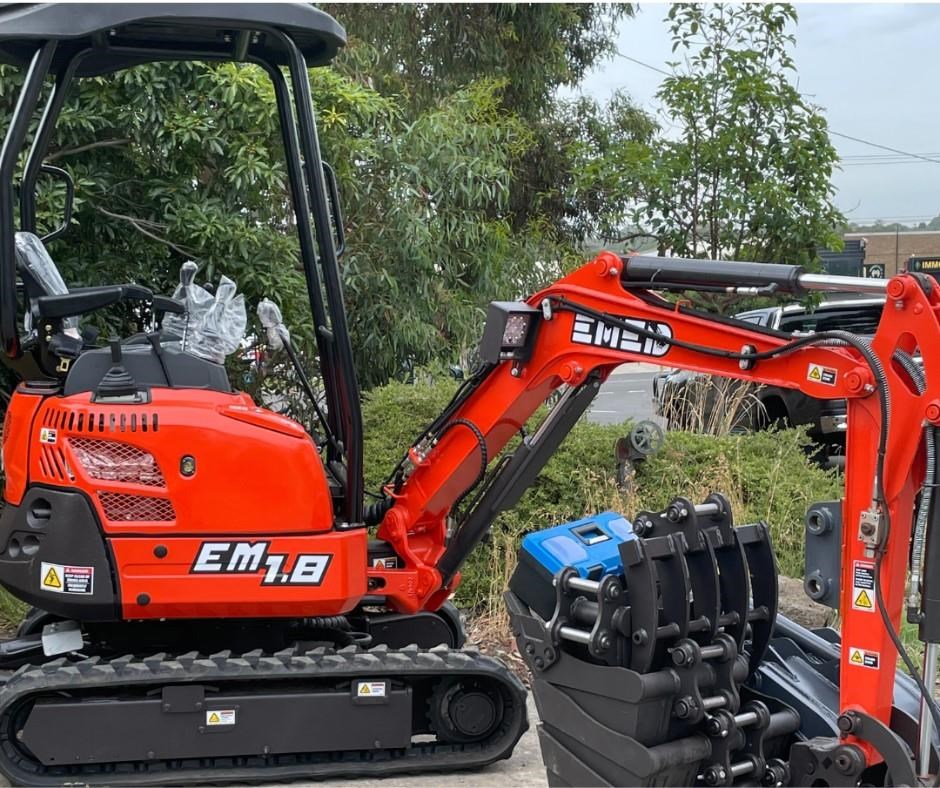

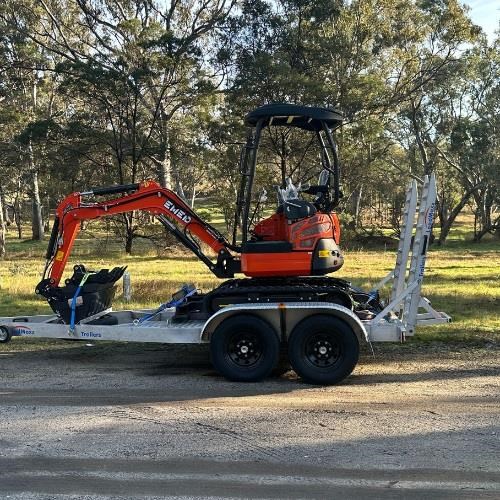

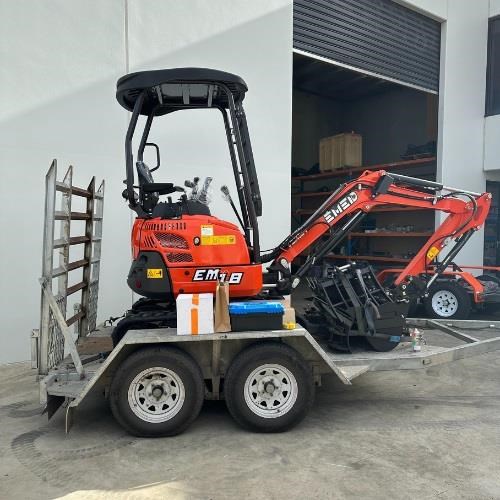

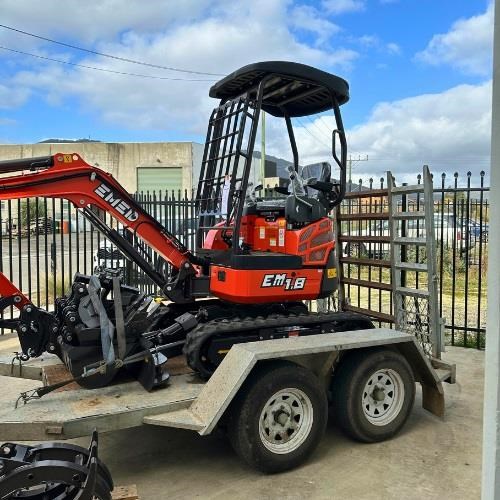

2023 EMED EM1.8TR

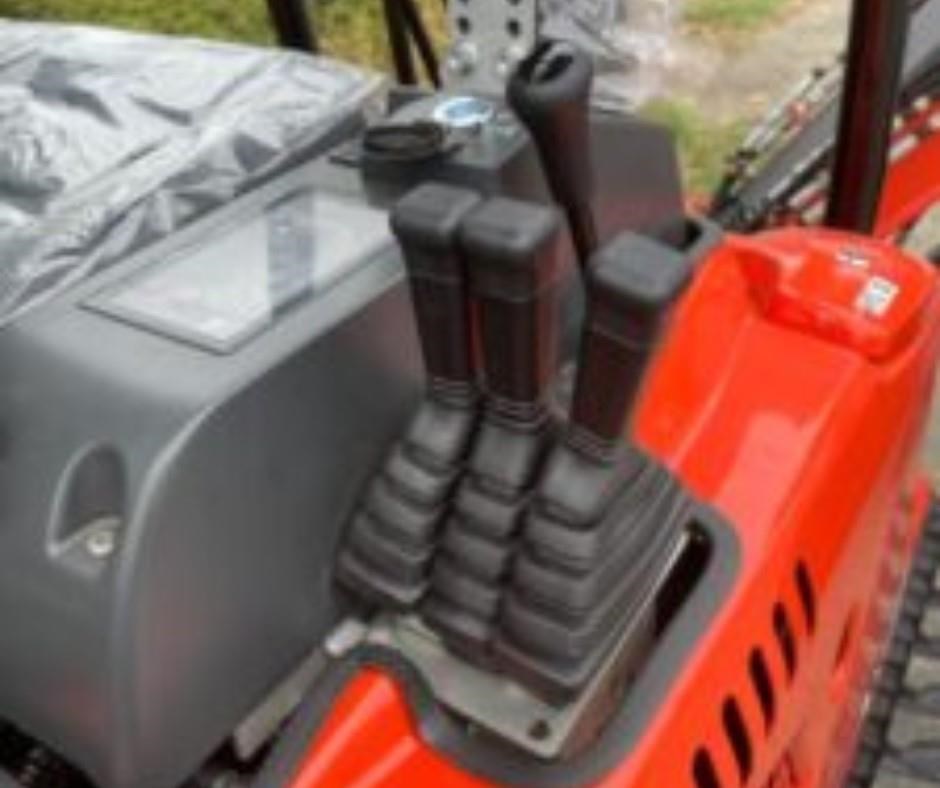

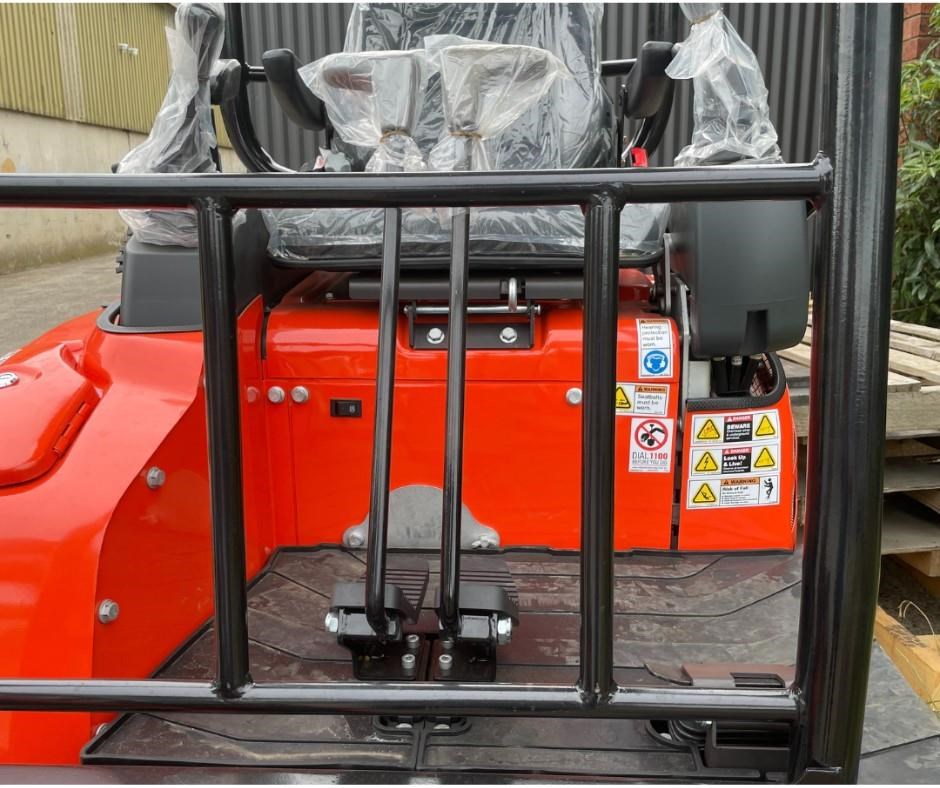

EM1.8 Mini crawler and trailer Yanmar engine, KDK Hydraulic main pump, USA Eaton motor, Pilot controls, swing boom & expandable tracks.

This package includes:
1 x EM1.8 Excavator with swing boom & expandable tracks
1 x Aluminum Plant trailer 3.5 Ton Rated

Plus our Standard FREE Inclusions:
Trenching Bucket 200mm
GP Bucket 400mm
Mud Bucket 600mm
Mud Bucket 1000mm
Hydraulic Quick Hitch
Rake
Ripper
Mechanical Grab
All Pins
Filter Kit
Tool Box

Specification:
Operating Weight: 1700kg
Expandable Tracks
Swing Boom
Digging bucket capacity: 0.045cbm/200kg
Digging bucket width: 420mm

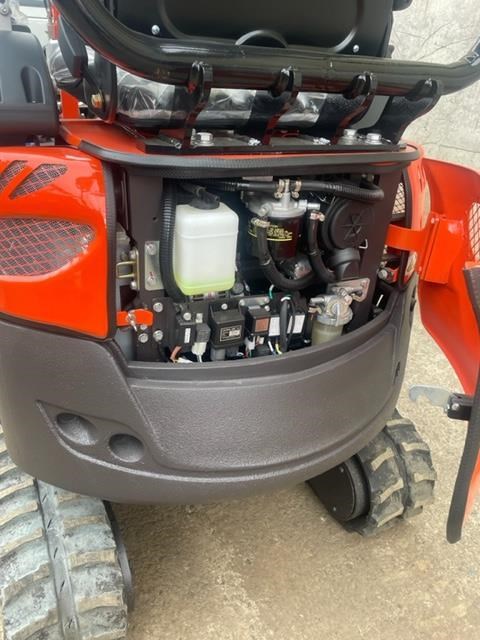

Engine: YANMAR 3TNV74F
Rated power: 13.7kw/18.4hp/2200/r/min
Displacement: 0.854L
Bore stroke: Three-cylinder, water cool
Main pump: KDK
Valve: PERMCO
Displacement: 6.8ml/r
Swing motor: EATON

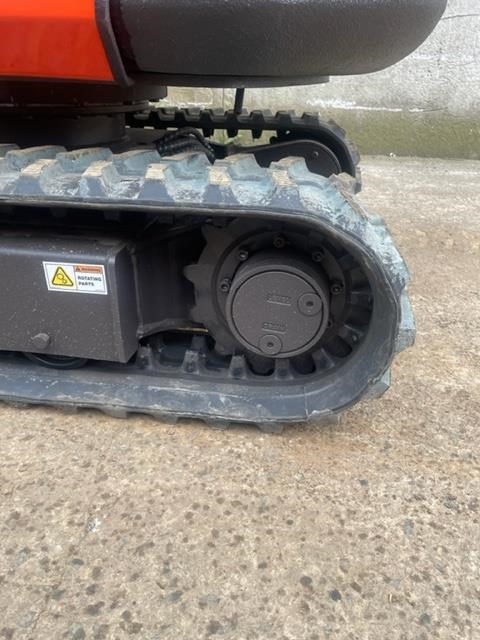

Traveling motor: KOREA DONGHYUN

Main Dimensions:
Overall dimension (LxWxH): 3160 x 990 (1040) x 2377mm
Total length of track on land: 1450mm
Platform ground clearance: 473mm
Platform back turning radius: 740mm
Chassis width: 1240mm

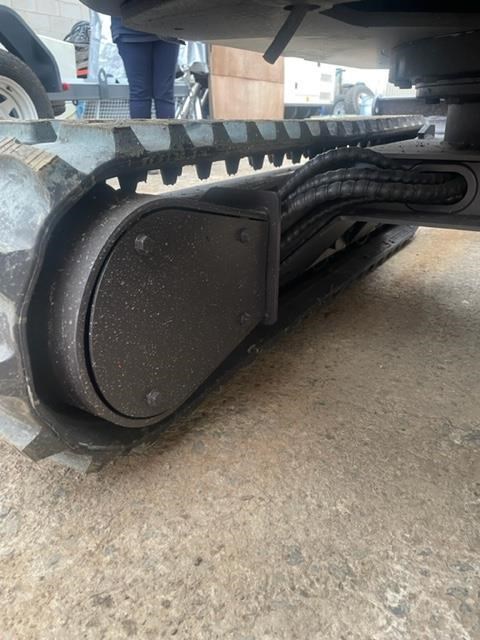

Track width: 230mm
Chassis ground clearance: 132mm
Track height: 360mm

Operating Range:
Max. Digging depth: 2150mm
Max. Vertical digging depth: 1740mm
Max. Digging height: 3275mm
Max. Dumping height: 2310mm
Max. Digging radius on ground: 3610mm
Min. Rotation radius: 1580mm

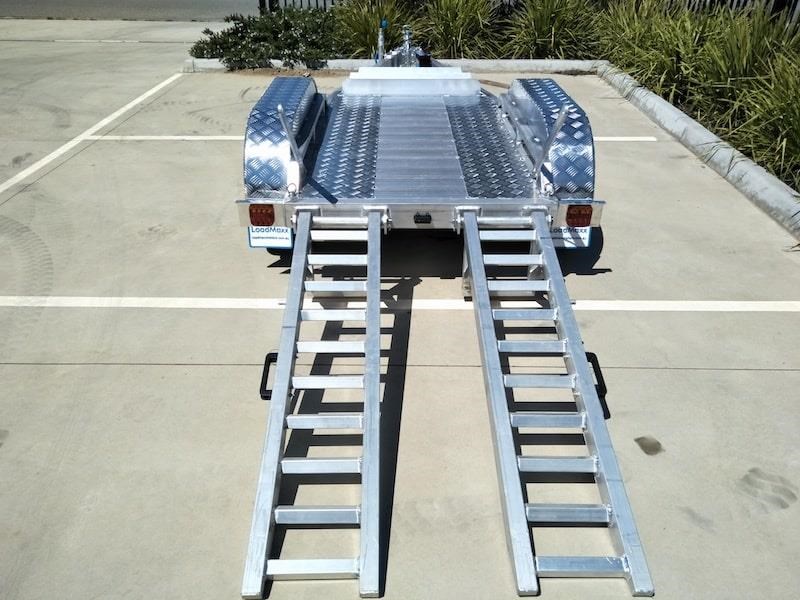

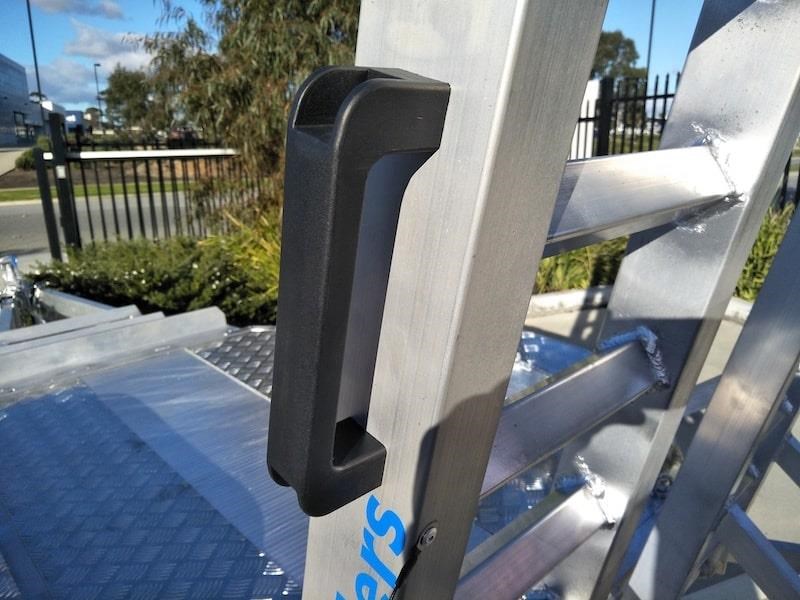

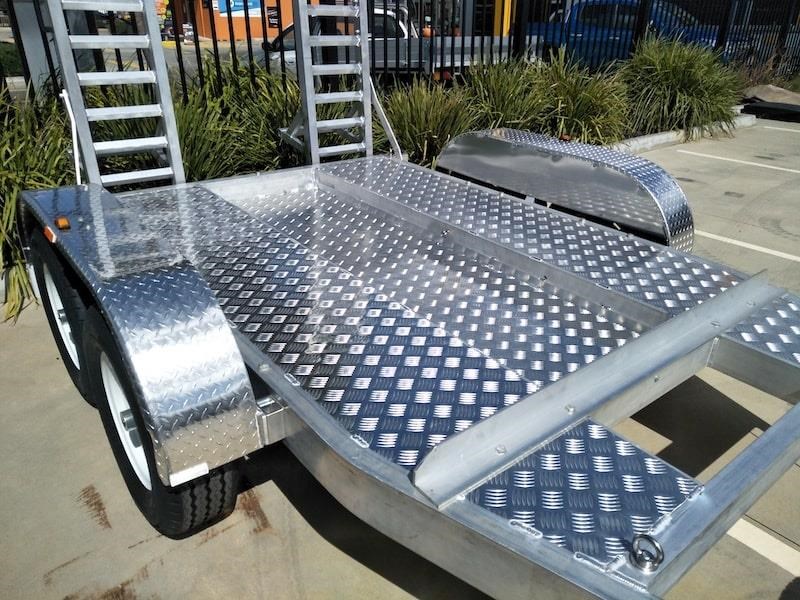

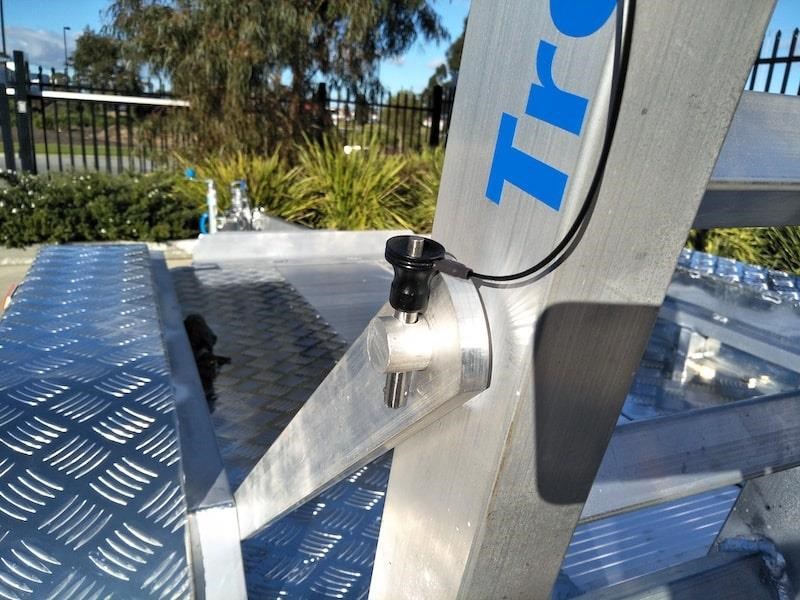

Excavator Trailer:
Aluminum Trailer EMPT3500

ATM 3500kg
Tare Weight 650kg
Payload Weight 2850kg
Torsion Axle x 2
Electric Brakes with break away device
LED Lights
Deck Length 2700mm
Deck Width 1830mm
Deck Height 550mm

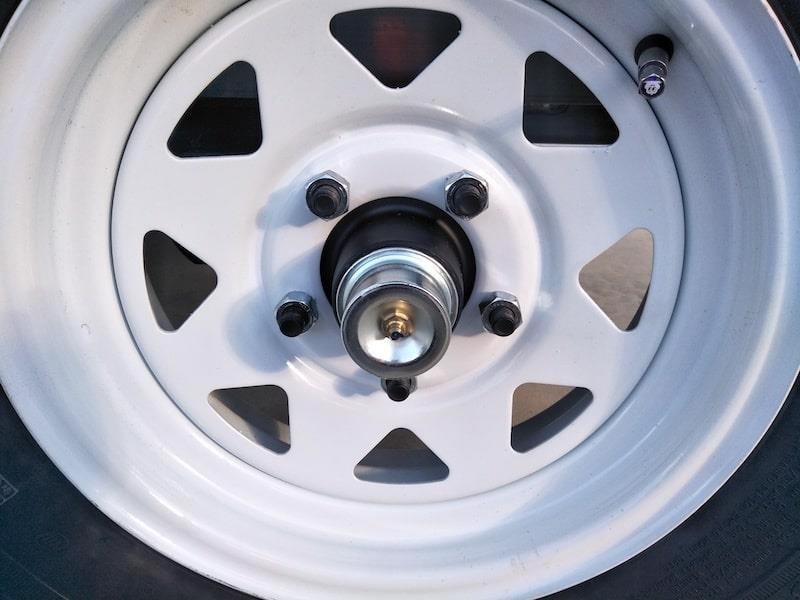

5 x Wheels & Tyres

Trailer Optional Extras:
Jerry Can holder $150 Plus GST.
Auger Post suits 70mm Auger $120 Plus GST.
Auger Drive Holder $250 Plus GST.
Registration N/A outside Victoria $150 Plus GST in Victoria.
Tie Down Kit $280 Plus GST Kit includes: Blinders x 2, 8mm rated chain 9m long with two hooks x 1 & 3.2T Rated strap for bucket x 1.
Upgrade to alloy wheels x 4 $495 plus GST.
Spare Wheel & Tyre $150 Plus GST Note: 1 x spare wheel & Tyre is included in purchase price of the trailer.


Trailer Warranty and what it covers:
1 Year Warranty & Lifetime Support

We will supply parts and labour for the first year, meaning if in the unlikely event your trailer has any issues excluding normal wear & tear during the first year, we will supply the parts and labour to get your trailer operational again. This might mean taking your trailer to a local repair centre, having them visit you, or us organising another method. You are fully supported and backed up with our 1-year parts and labour guarantee we will work with you to get you sorted asap.



Excavator Warranty:
3 Year Warranty & Lifetime Support

We will supply parts and labour for the first year, meaning if in the unlikely event your machine breaks down during the first year, we will supply the parts and labour to get your machine operational again. This might mean taking your machine to a local repair centre, having your local mechanic visit you, or us organising another method. You are fully supported and backed up with our 1-year parts and labour guarantee we will work with you to get you sorted asap.

In addition to the above we also offer a 3-year parts warranty from the date of purchase. If you have any issue with your machine outside of normal wear and tear items such as tracks, washers, batteries, fan belts etc. we will supply all parts to you so you can quickly and easily replace them and keep the machine operational.

Other Benefits:

Australia-wide delivery
Available for private retail & commercial purchase
Bulk order specialists

• Finance available for approved applicants

Note Auger not included
