BUILDPRO T64212

T64212 BuildPro Adjustable Rest - Low Profile ??44.5 x ??16 x 22~30mm Suits ??16mm Welding Tables Holes

BUILDPRO T64212 BuildPro Adjustable Rest - Low Profile ??44.5 x ??16 x 22~30mm Suits ??16mm Welding Tables Holes
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W08005

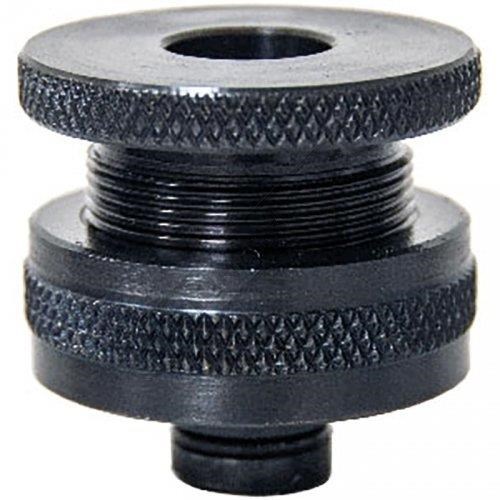

Developed by customer demand, the Adjustable Rest is operated manually, by hand adjustment, with a turn of the
easy-grip knurled band for complete control in precise, minute height adjustment. (Model T64213: Range: 50 mm ???
70 mm. Model T64212: 22 mm height with 8 mm stroke range.)
Insert into any fixturing hole on the BuildPro?? Modular Welding Table for use as a support or rest for aligning stock
at a uniform height and providing welding clearance. BuildPro?? V-Blocks fi t into the top cavity of the Adjustable
Rests to support round pipes. Adjustable Rests are stackable for use with tall stock.

- Insert into any hole on the BuildPro table with the ??16 mm Locating Post.
- Securely fasten to the tabletop for repetitive applications using the Locking Pin with cap screw (included).
- Remove the Locating Post or the Locking Pin, and place the Rest anywhere on the BuildPro tabletop.

The very practical, modular design of the BuildPro?? Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro?? clamps and accessories.

All BuildPro?? Tables have 16mm thick steel plate with ??16mm holes in a 50mm grid pattern. All tables, except BuildPro?? MAX, have 40mm slots between plates.

Features:
??44.5mm Top Diameter
??16mm Bottom Diameter
22 ~ 30mm Top Height


Specifications:
ORDER CODE: W08005
MODEL: T64212
Suits Table Hole Size (??): 16mm
Type: Adjustable Rest
Suits Table Thickness (mm): ~
Diameter (??): 44.5mm
Quantity Per Pack (No.): 1
Thread: ~
Over all Height: 22-30mm
Attachment Type: ~
Nett Weight (kg): 0.5
